| SC3058ASDER |
|
| 品牌 | SOUTHCHIP |
| 型号系列 | SC3058A
|
| 品类 | PWM converter |
| 描述/说明 | High Frequency Quasi-Resonant Flyback Converter With GaN Integrated |

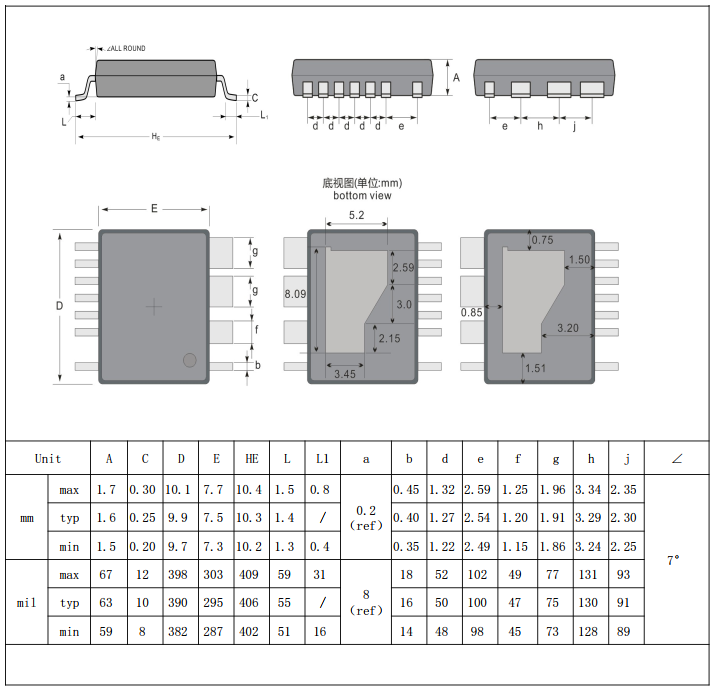

| 封装/外壳/尺寸 | ESOP10-W |
| 最小包装量 | 1,000 |
| 包装形式 | 卷带 |
| 生命周期 | 有效(ACTIVE) |
| 停产时间 |
|
| Switching Frequency | Up to 175KHz |
| HV to GND | 700V |
| VDD to GND | -0.3V~44V |
| Operating Junction temperature range | -40°C~150°C |
Descriptions
SC3058A is a high frequency, flyback PWM converter with
700V GaN integrated (QR/DCM/CCM), which can achieve
high efficiency and reliability.
SC3058A provides an adaptive switching frequency foldback
to achieve higher efficiency in the whole loading
range. At heavy load or full load, it operates up to
maximum switching frequency. When loading decreases,
it operates in green mode with valley switching for high
efficiency. And at no load, the IC will operate in Burst
mode to reduce power consumption.
It provides functions of low start-up current, fast start-up,
low standby power consumption. The burst mode with
extremely low operation current (240uA) and significantly
reduces standby power consumption to meet the
efficiency regulations.
The SC3058A offers comprehensive protection to prevent
the circuit from damage under abnormal conditions.
Furthermore, the features of frequency jittering and smart
driving function can minimize the noise and improve EMI
performance. 描述SC3058A 是一款高频反激式 PWM 转换器，内置 700V GaN（QR/DCM/CCM），可实现高效率和高可靠性。SC3058A 提供自适应开关频率回退功能，以在整个负载范围内实现更高的效率。在重载或满载时，它运行在最高开关频率。当负载减少时，它以绿色模式和谷值开关方式运行以实现高效率。在无负载情况下，IC 将以突发模式运行以减少功耗。它具有低启动电流、快速启动、低待机功耗功能。突发模式下工作电流极低（240µA），显著降低待机功耗，以满足效率法规要求。SC3058A 提供全面保护功能，以防止电路在异常情况下受损。此外，频率抖动和智能驱动功能能够最大限度地降低噪声并改善 EMI 性能。
Features
Internal Soft Start
Integrated 700V GaN FET
High Efficiency
➢ CCM @ Heavy Load and Low Line
➢ Valley switching operation @ Green mode
➢ Burst Mode @ Light Load & No Load
Ultra-low operation current @Burst mode/Fault Mode
Adaptive loop gain compensation
Frequency Jitter for EMI improvement
Comprehensive Protection
➢ VDD over voltage protection
➢ VDD under voltage lock out
➢ Cycle by cycle current limiting
➢ Two level over current protection
➢ Adaptive output short protection
➢ Over Load protection
➢ Brown in/out with auto-recovery
ESOP10-W package available
特点 内部软启动 集成 700V GaN FET 高效率➢ 重载和低电压下的 CCM➢ 绿色模式下的谷值开关操作➢ 轻载和无载下的突发模式 突发模式/故障模式下超低工作电流 自适应环路增益补偿 频率抖动以改善 EMI 全面保护➢ VDD过压保护➢ VDD欠压锁定➢ 逐周期电流限制➢ 双级过流保护➢ 自适应输出短路保护➢ 过载保护➢ 棕入/出自动恢复 提供 ESOP10-W 封装
Applications
USB-PD and QC Chargers
AC-DC adapters for Portable Devices
应用 USB-PD 和 QC 充电器 用于便携设备的交流-直流适配器
