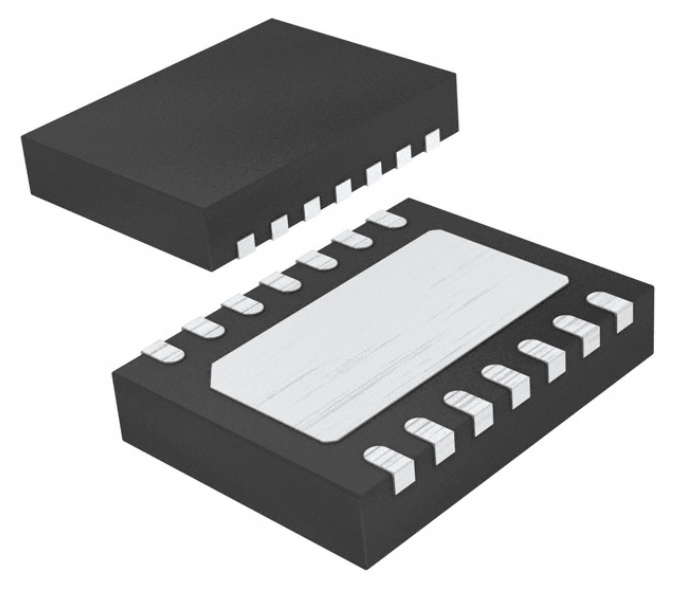

封装：DFN2030-14L

General Description

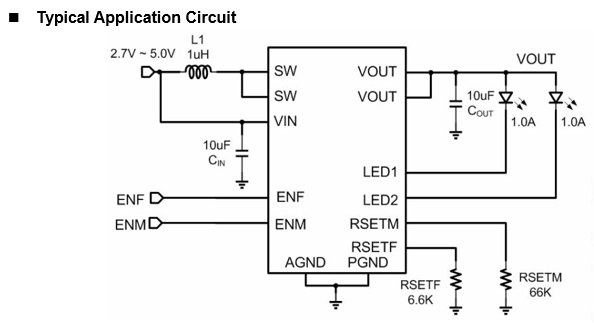

     The AS6533 is a 3MHz fixed frequency synchronous boost converter, optimized for maximum 1.0A/Ch, total 2.0A camera LED flash application and maximum 800mA movie mode applications using high-current white LEDs in all single cell Li-ion powered products. An adaptive regulation method ensures the current for each LED remains in regulation and maximizes efficiency.

    Two simple logic control inputs (ENM and ENF) enable and disable flash and movie mode operation of the AS6533. Movie-mode and Flash-mode current levels are independently fixed by two separate resistors (RSETM and RSETF).

For flash mode, a default timer 800mS can be used either to terminate a flash event or as a safety flash timer. One or two LEDs can be connected to the AS6533; in the case of two LEDs the output current is matched between each diode.

    The AS6533 integrate an intelligent flash current control mode: during flash current turn-on the input voltage falls below the flash mode supply monitor threshold, the flash current is stopped at the level that the current ramp had risen to, at the time of the flash mode supply monitor events.

The AS6533 contain a thermal management system to protect the device; a internal over-voltage protection (OVP) circuitry prevents damaged to the AS6533 from open LED or open circuit conditions; and a cycle-by-cycle current limit prevents damage to the AS6533. Built-in circuitry prevents excessive inrush current during start-up. The shutdown feature reduces quiescent current to less than 1.0μA.

    The 3MHz switching frequency allow for the use of tiny, low profile (0.47uH or 1.0uH) inductors and 10uF ceramic capacitors. The device is available in 14-pin 2mmX3mm DFN package and is rated over the -40°C to 85°C.
